Navy i-Size Black Onyx Car seat

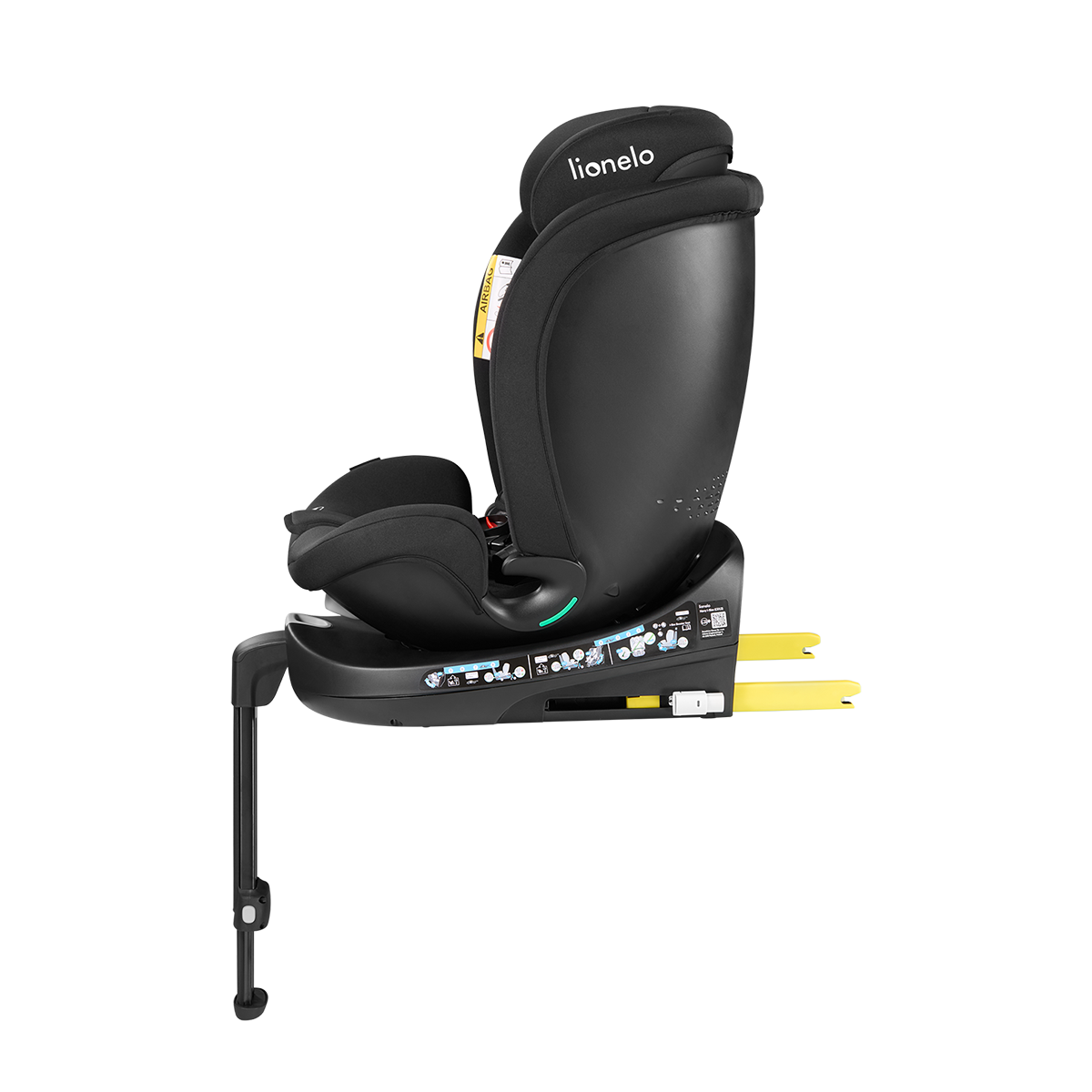

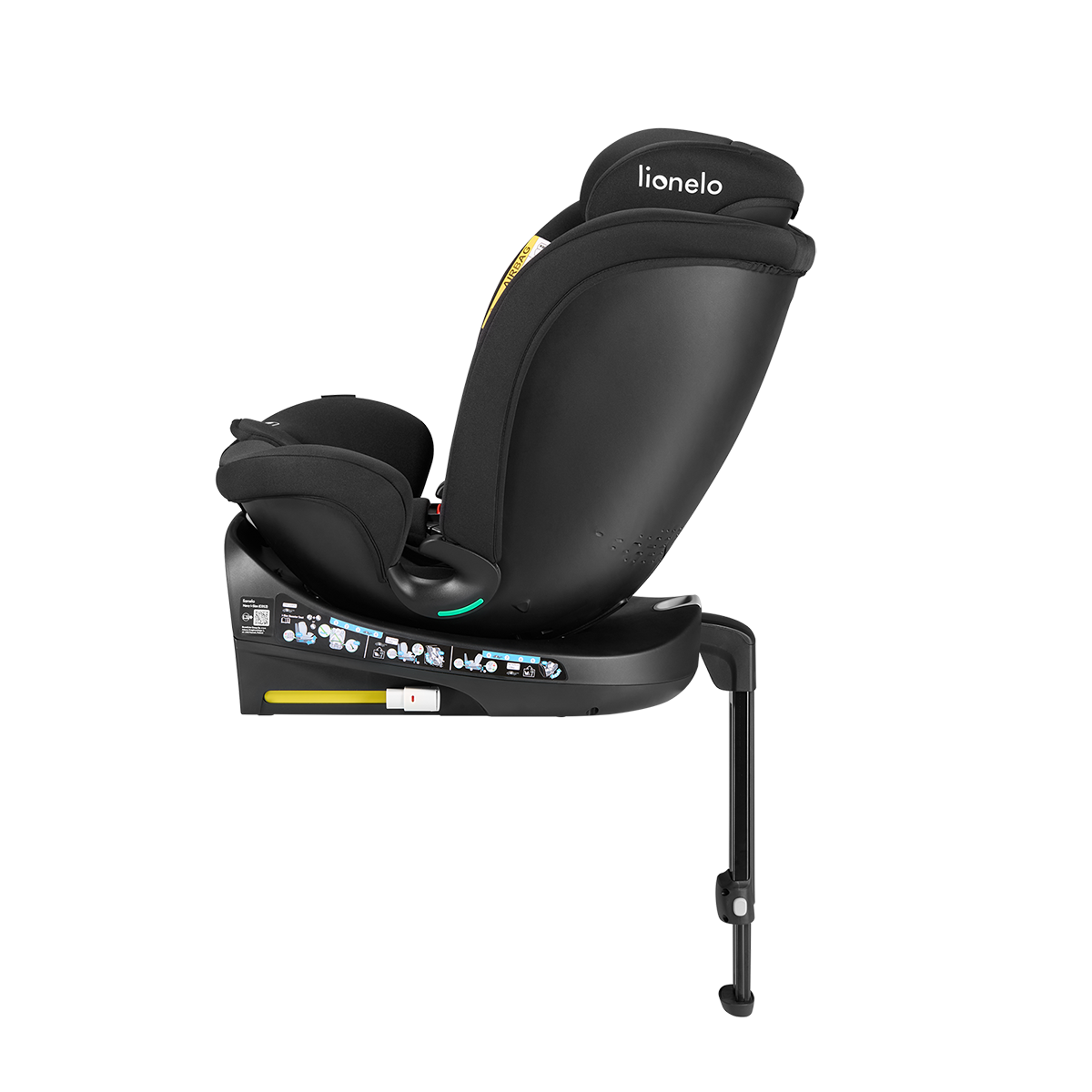

The car seat is installed rear-facing for a child measuring 40–105 cm and weighing up to 18 kg, using ISOFIX and the support leg. Extend the leg, place the car seat on the vehicle seat, extend the ISOFIX connectors and attach them to the anchor points until a green indicator appears on both sides. Press the base against the vehicle seat backrest by moving it from side to side, then adjust the leg so that its foot rests on the vehicle floor, not on a storage compartment or any other object. Check the green leg indicator and make sure the leg is not tilted. A child below 75 cm should use the reducer insert. After fastening and tightening the harness, rotate the seat rear-facing until it clicks and select one of the 4 recline positions.

For forward-facing travel, install the car seat for a child measuring 76–105 cm and weighing up to 18 kg, using ISOFIX and the support leg. Extend the leg, place the car seat on the vehicle seat and rotate the seat forwards until you hear a click. Extend the ISOFIX arms, attach them to the vehicle seat anchor points and check the green indicators on both sides. Push the base against the vehicle seat backrest, then place the leg on the vehicle floor without resting it on a storage compartment or other objects. Check the green leg indicator and make sure the leg is not tilted. Remove the reducer insert above 75 cm, fasten and tighten the harness, and set one of the 4 inclination positions.

To fold the support leg, press its adjustment button and slide in the extendable section. Then fold the leg towards the car seat. Once the latch is released, the support leg indicator will turn red.

To release the car seat from ISOFIX, press the ISOFIX release buttons on both sides and detach the arms from the anchor points. The ISOFIX indicators will change from green to red. Finally, retract the arms into the base by pressing the release lever.

The car seat harness can be removed in the configuration for a child measuring 100–150 cm. Release it using the red button on the buckle, remove the reducer insert, then remove the buckle cover and harness covers. Detach the harness from the hooks beneath the upper part of the backrest cover and place it underneath the cover. Thread the buckle through the appropriate opening in the seat cover, store it inside the seat and fasten the harness.

First loosen the harness by holding down the harness tension adjustment button, then pull the headrest adjustment lever. Set the height so that the shoulder straps do not run at ear level or above, or behind the child's back. The headrest has 11 adjustment levels, and the harness height changes together with it.

Press the inclination adjustment lever and set the seat to the desired position. Move it slightly until you hear a clear click confirming that the position is secured. The car seat has 4 inclination adjustment levels for both rear-facing and forward-facing travel.

To rotate the seat, press the rotation lever and turn the car seat 90 degrees. This mechanism helps you place your child in the car seat and lift them out. Then set the seat rear-facing or forward-facing until a click confirms that it is correctly positioned.

To remove the cover, pull the headrest adjustment lever and lift the headrest. Unfasten and remove the harness covers, then undo the fabric fasteners behind the headrest and remove its cover. Remove the rubber attachments on the sides near the lap belt guide and take the cover off the lower part of the seat. To put it back on, follow these steps in reverse order.

Clean small stains with a damp sponge and a mild cleaning product. Once the cover has been completely removed from the shell, it can be washed at a temperature of up to 30°C. Do not tumble dry it or leave it to dry in direct sunlight. Wipe the plastic parts with a damp cloth and mild detergent, avoiding strong cleaning products and bleach.
